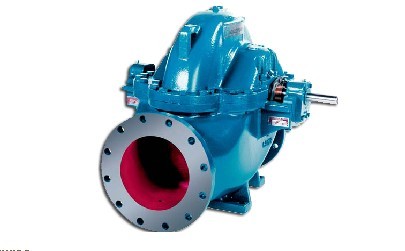

Split casing pump (KSB Omega type) |
|
Product name : Single stage double suction Split casing pump (S & HS type) |
Item : KSB Omega type |
Features : |
---Axially split casing
---Double suction single-stage impeller, hydraulically and statically balanced.
---Horizontal or vertical installation
---Shaft sealed by gland packing or mechanical seal
---Various materials available with cast iron, ductile iron, bronze and stainless steel, or with corrosion proof coating used in wet parts.
|
Data sheet : |
Flow: up to 12300m3/h
Head: up to 200m
Speed: 1480r/min, 2950r/min (50HZ) 1750r/min, 3540r/min(60HZ)
Temperature: 105℃max
Working pressure:2.5MPa
|
Application: |
---Industrial and municipal water supply
---Chilled and condenser water circulating systems
---Water treatment plants
---Fire fighting
---Irrigation and sprinkler pumping stations
|
|
|
|
